MPFSC-120

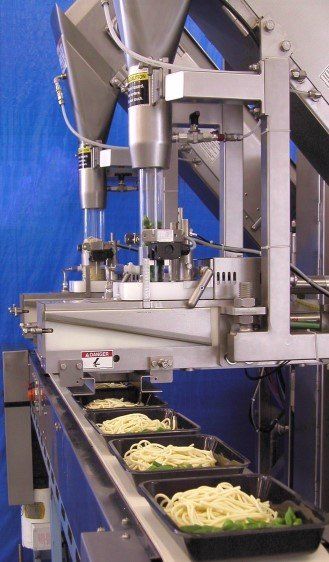

The MPFSC-120 Automatic Pocket Filler

MPFSC 120

The MPFSC-120 volumetric filler dispenses clean, accurate portions of a wide variety of difficult-to-fill products, including: cooked rice, cooked pasta (long and short goods), cut vegetables, cut fruit, refrigerated salads, cereal, trail mix, surimi, shrimp, and shredded meat.


This machine is rated at speeds up to 120 containers per minute depending upon the product, container, and conveyor configuration. Our machines are compatible with a wide variety of container conveying systems, either continuous or intermit-tent motion, vertical or horizontal bagging machines for trays, plates, cartons, cups, pouches (including stand-up), cans, jars, boxes, and more.


When the product is loaded into the hopper a conveyor belt with a special finger design, driven by a variable frequency drive, meters the product to the filling head.
Download the Spec Sheet Find a Representative
F E A T U R E S

Simple & Powerful

Innovative Filling Head Design

Translucent product in-feed tube with electronic level control

Adjustable volumetric pocket system equipped with either a plate product separating device, sharp knife, or needle assembly

Adjustable filling head supports for easy height adjustment over the container conveyor lane

Advanced

A no-container, no-fill function is activated by a proximity sensor located near the filling head.

Built to Last

This mobile unit can be quickly cleaned and moved to a different production line in minutes, ready to fill a different container with few or no change parts.

Our systems are manufactured to the standards of major regulatory bodies such as ANSI, FDA, USDA, and CE.

User Friendly Interface

An Allen Bradley PLC controls all the functions of the filler. A color screen displays the operating parameters for easy interface between the operator and PLC. Both have built-in memory cards for program back-up.

Sanitary Design, Easy to Clean

The filling head can be quickly and completely disassembled without tools.

Cleaning is fast and easy with minimal moving parts, a tilt-out hopper, hinged console, tilt-drip pans, easy head disassembly, and quick belt release.

Adaptable

The MPFSC-120 canbe fitted with smaller or larger filling change parts as well as distribution systems for multiple lanes conveyor systems.
