MPMFP-060

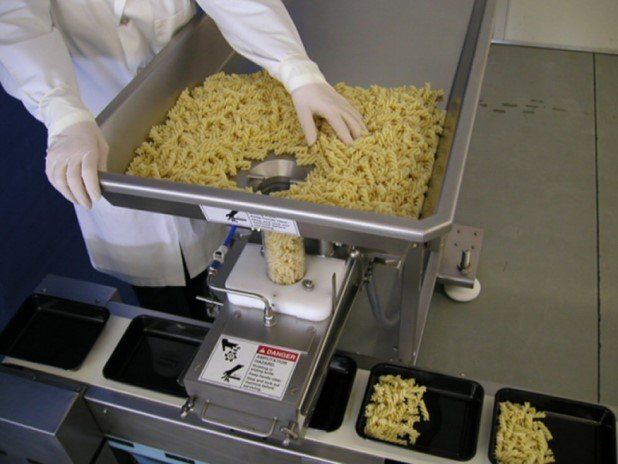

The MPFMP-060 Semi-Automatic Pocket Filler

The MPFMP-060 volumetric pocket filler dispenses clean, accurate portions of a wide variety of difficult-to-fill products including:


  • Cooked rice
  • Cooked pasta (long & short)
  • Cut vegetables & fruit
  • Ready-to-eat salads
  • Cereal
  • Surimi, shrimp, & shredded meats

This filler is ideally suited for lower speed production lines, research and development labs, and pilot plant operations. It is rated at speeds up to 60 cpm, depending upon the product, volume to fill, container, line configuration, and operator.
Download the Spec Sheet Find a Representative
F E A T U R E S

Simple & Powerful

Innovative Filling Head Design

The filling head is designed with an adjustable volumetric pocket system equipped with either a plate product separation device, sharp knife, or needle assembly depending upon the type of product being filled. The discharge is controlled in syn-chronization with the container flow.

The filling head can be quickly and completely disassembled without tools.

Small Foot Print

The compact design permits easy integration of the machine in practically any production line.

Easy to Move

This mobile unit can be quickly cleaned and moved to a different production line in minutes, ready to fill a different container with few or no change parts.

User Friendly Interface

A small Allen Bradley PanelView graphics terminal provides a user friendly interface to the PLC for set-ups with production, test, and clean modes. With less moving parts, adjustments can be done while the machine is operating and maintenance is reduced.

Level control is accomplished by keeping the filling tube full.

Meets or Exceeds all industry standards

The compartmentalized stainless steel enclosure (manufactured to NEMA 4X, IP66 standards) contains all of the pneumatic and electrical components.

Adaptable

The MPFMP-060 can
be fitted with smaller or larger filling change parts as well as a two-position distribution system.
