MPFSH-075

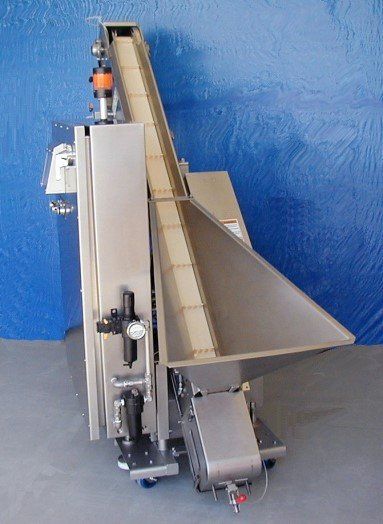

The MPFSH-075 Automatic Pocket Filler


The MPFSH-075 volumetric filler dispenses clean, accurate portions of a wide variety of difficult-to-fill products, including:



  • Cooked rice
  • Cooked pasta (long & short)
  • Cut vegetables & fruit
  • Ready-to-eat salads
  • Cereal
  • Surimi, shrimp, & shredded meats

This machine is rated at speeds of up to 75 containers per minute, depending upon the product, container, and conveyor configuration.


Our machines are compatible with a wide variety of container conveying systems, either continuous or intermittent motion, vertical or horizontal bagging machines for trays, plates, cartons, cups, pouches (including stand-up), cans, jars, boxes, and more.


When the product is loaded into the hopper a conveyor belt with a special finger design, driven by a variable frequency drive, meters the product to the filling head.


To ensure easy positioning on the line, the filling head is mounted on the product in-feed conveyor.
Download Spec Sheet Find a Representative
F E A T U R E S

Simple & Powerful

Innovative Filling Head Design

Translucent product in-feed tube with electronic level control.

Adjustable volumetric pocket system equipped with either a plate product separating device, sharp knife, or needle assembly

The filling head can be quickly and completely disassembled without tools

Advanced

Discharge controlled in synchronization with the container flow, assisted by a clean adjustable air jet.

Positive traction belt drive results in no slippage and low tension, less stretching, longer belt life, and is easy to clean. The blue belt corresponds to the food industry safety standards. Quick belt release.

Built to Last

The stainless steel enclosure (NEMA 4X, IP66) is compartmentalized to isolate various electrical power, air, water controls, and operating components. It is mounted to the in-feed conveyor base, and the functions of the filler are controlled by pneumatic components.

User Friendly Interface

An Allen Bradley PLC controls all the functions of the filler and a graphics terminal provide a user friendly interface to the PLC for setups with production, test and clean modes. Adjustments can be done while the machine is operating. With less moving parts, maintenance is reduced.

Easy to Clean

Cleaning is fast and easy with minimal moving parts, a tilt-out hopper, hinged console, tilt-drip pans, easy head disassembly, and quick belt release. No tools are needed.

Adaptable

This machine has been designed to permit an easy upgrade to a MPFSC-120 model with PLC capacity to increase speed and functionality.
